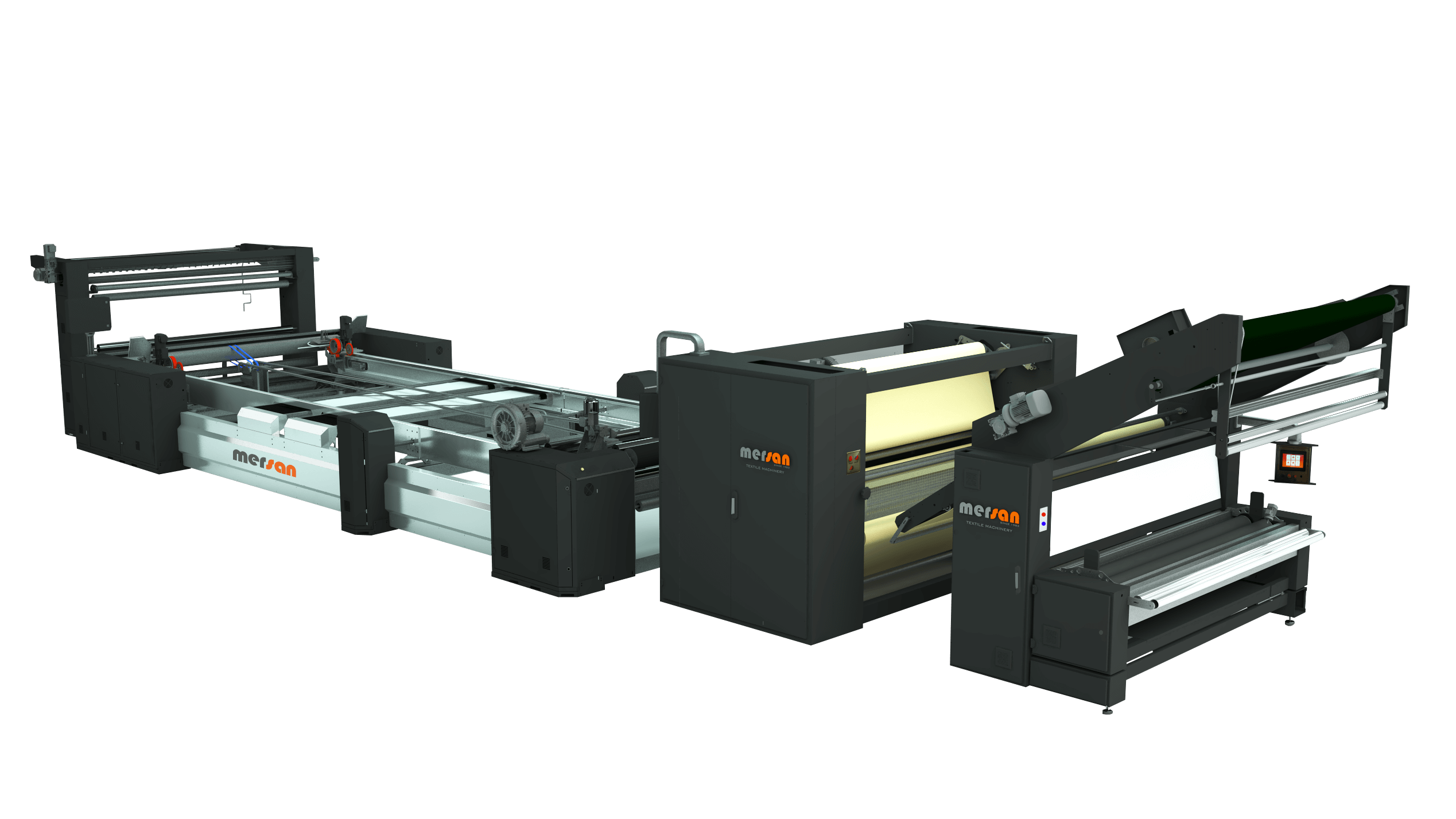

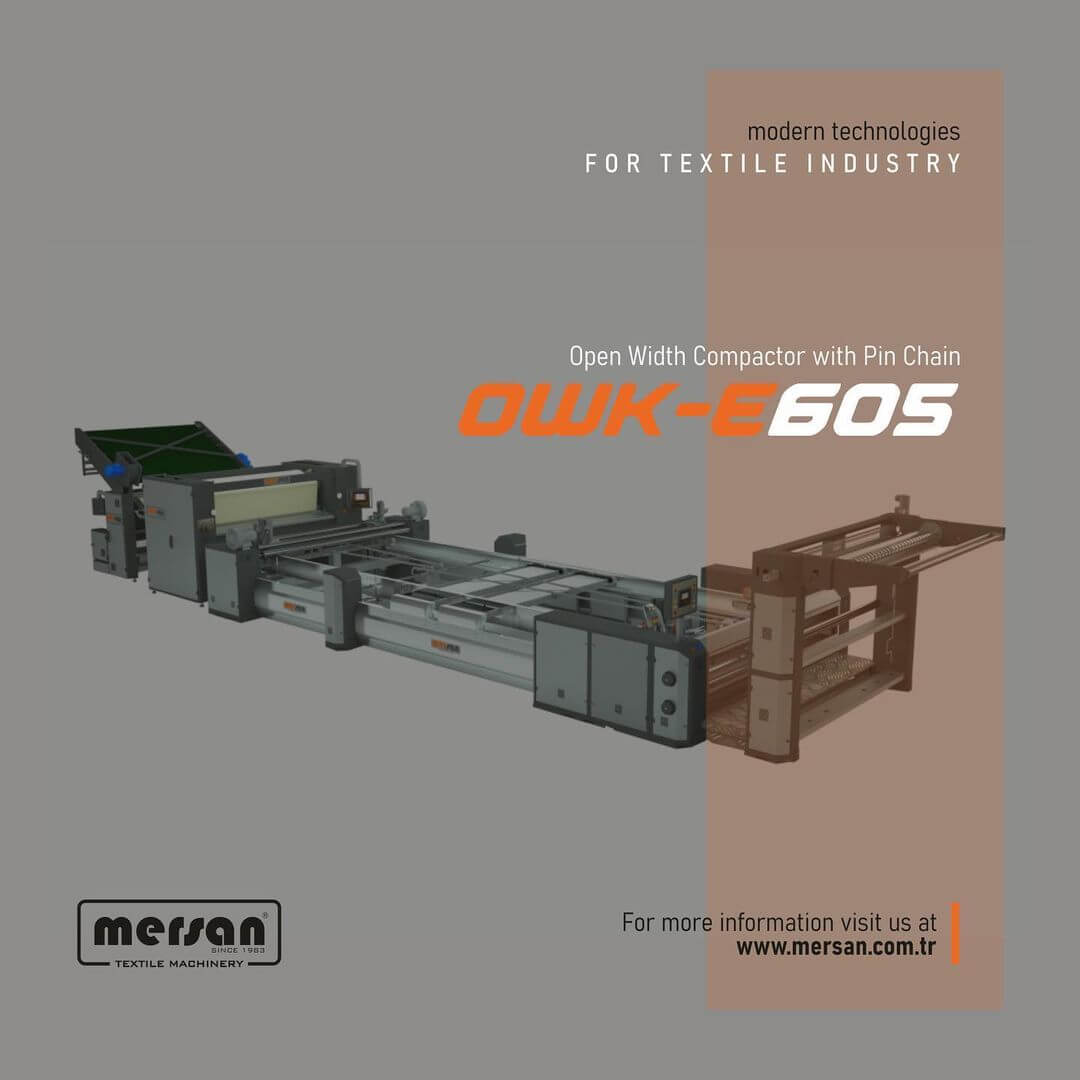

Open width compactor with pin chain OWK_E 605

Open width compactor with pin chain OWK_E 605

On knitted fabrics, the desired full surface compactness and shine can be obtained from the compression and pressing of the fabric between the felt, teflon and cylinder. This process can be also obtained with the open width compactor machine when desire as with fabric from the stenter, by placing or using the Pin_Chain Stenter system before it, with fabric that have come out of the dryer.

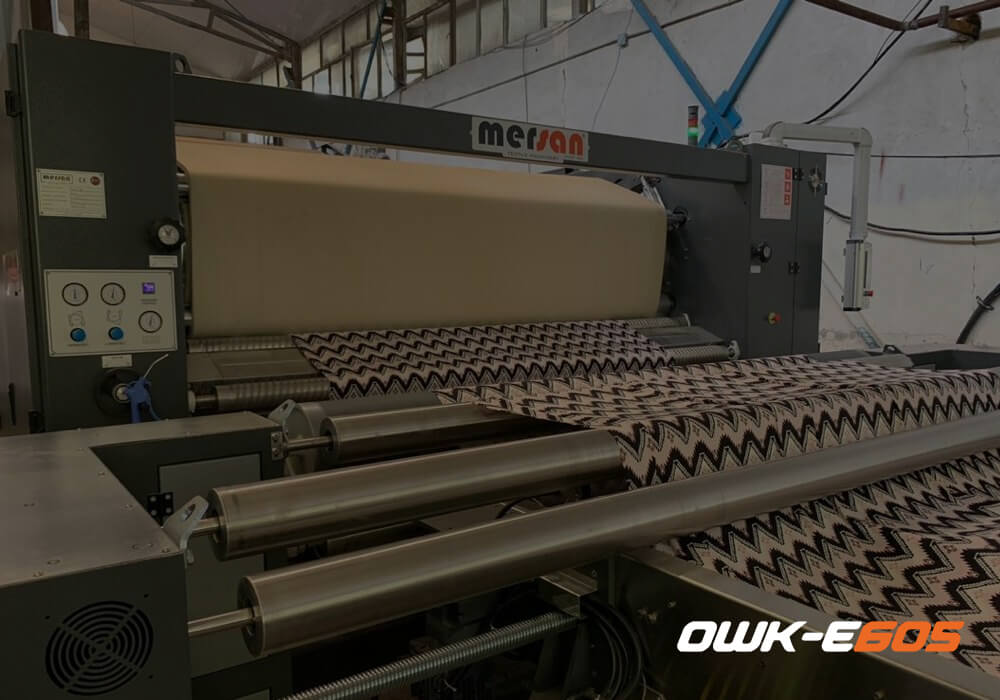

Fabric is covering 270 degree from 605mm diameter heating roller. This mean fabric wrapping length is 1450mm for each rollerm total fabric contact surfaces 2900mm for both rollers.

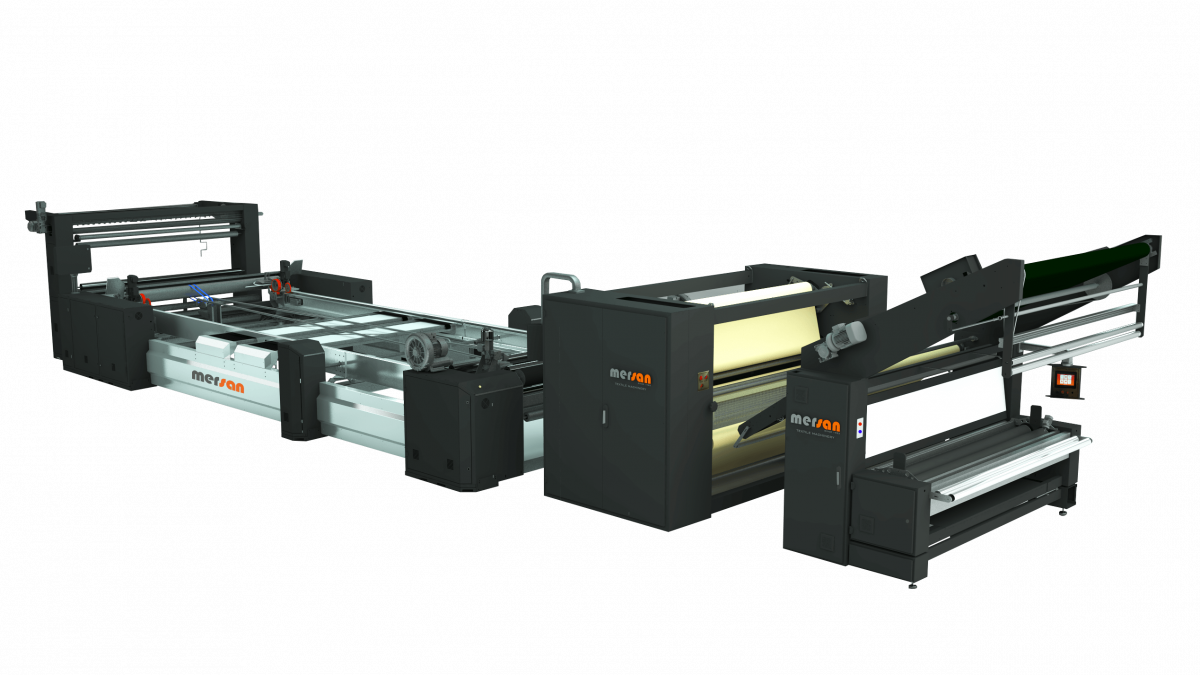

Open width compactor with pin chain OWK_E 605

OWK_ E 605

Open width compactor with pin chain OWK_E 605

Fabric Edge Spreader

Mechanical edge spreading unit is one of the best solution where can be uncurled fabric edged before pinning.

Open width compactor with pin chain OWK_E 605

Fabric Edge Trimming Unit

Wastage success up to 3-4 mm, 8-10mm fabric edge wastage (with gum application)

Properties

Open width compactor with pin chain OWK_E 605
  • Fabric guiding centering unit
  • The length of chain 9m,5m konik, 4 is paraler
  • Absolute fabric edge opening performance thanks to mechanical opening group and addition system
  • Operator platform and interance group
  • Functional control panel and PLC system
  • Driven fabric conveyor unit, synchronized with machine speed or can be adjusted separately
  • Double steam box group
  • Stainless steal chain rails and chain links
Open width compactor with pin chain OWK_E 605
Open width compactor with pin chain OWK_E 605
Open width compactor with pin chain OWK_E 605



  • Independent chain rail motor-gearbox system encoder and inverter controlled
  • Pneumatic chain tension adjustment group
  • Automatic chain lubrication system, PLC controlled lubrication time setting



  • Tension control with load cell cylinders at 5 points
  • Compacting unit
  • Conveyor belt and cooling unit
  • Roller exit fabric unit
Open width compactor with pin chain OWK_E 605

Technical Specifications

Open width compactor with pin chain OWK_E 605





Max. working width  2400mm

Max. working speed  35m/min

Installed power  38 kw

Steam consumption  165 kg/h

Air consumption  80-90 kg/h

Why OWK-E 605?

  • The best dimensional stability
  • Stabilize fabric structure
  • Fabric surface treatment and adjustment
  • Innovation design
